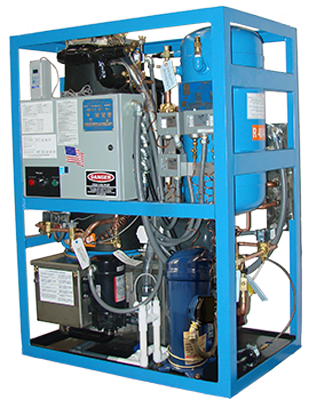

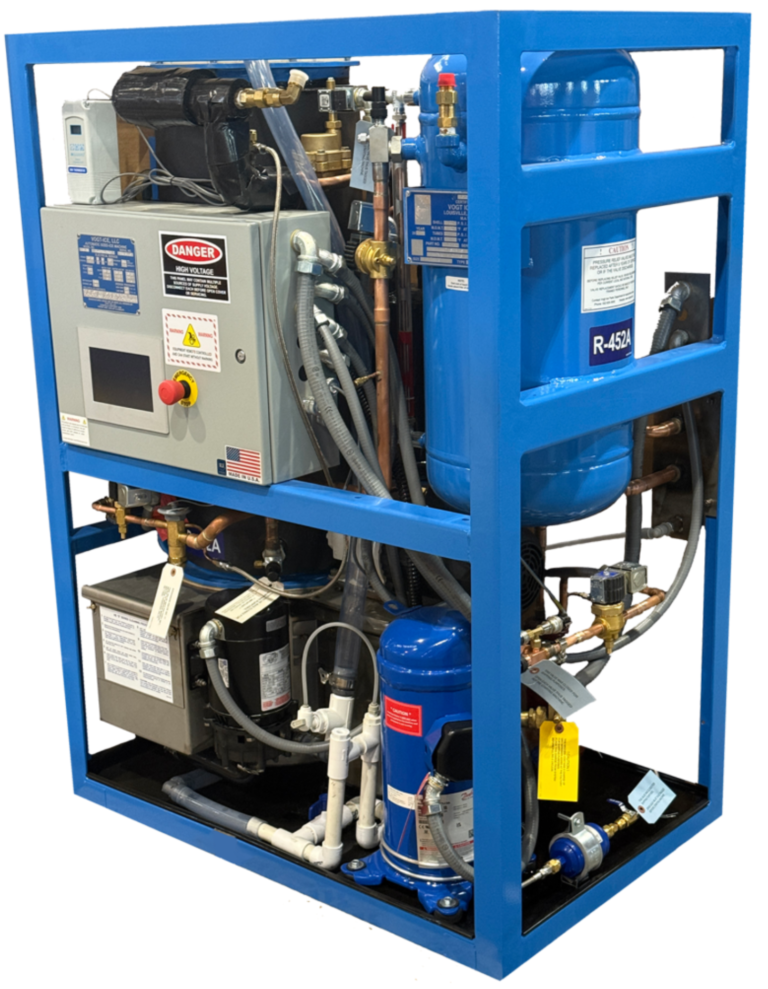

Vogt Tube Ice Maker - HES Series
Vogt Tube Ice Industrial Ice Makers offer a cost effective way to meet the needs of your customers by reducing the need for ice screening and sizing equipment and utilizing a unique process which freezes ice automatically in vertical tubes, thaws the ice, and then cuts it into short cylinders with a hole in the center. The hole is formed during the formation of the ice as a result of the falling film of water freezing inside the vertical tubes. The result is a sized product and more usable ice per bag.
Modern Ice offers the Vogt HE Series Tube Ice Makers with capacities of 2,000 to 4,000 pounds of ice per day. They are the preferred choice of ice machine for thousands of food service applications worldwide. The HE series is available with a Dual Ice option to provide cylinder “tube” ice or crushed ice from a single unit or can be converted to crushed ice from tube ice manually. The Vogt HE Series will provide you with many years of dependable service. Heavy-duty industrial construction, automatic operation, energy efficiency and the best warranty in the business make the Vogt HE Series the only “clear” choice for your ice making needs.
HE Series Standard Features:
-Factory Tested and Certified
-25 Year Evaporator Warranty
-Voltage – 208/230 v, 3 p, 60 hz
-R404a Refrigerant
-Cutter for Cylinder “Tube” (default) Ice or Crushed Ice Operation
-Copeland Performance Alert Power Monitor
-Electronic Ice Bin Thermostat
-Stainless Steel Casings
-Integral Drip Pan
-Self-Diagnostic Indicator Light
-Water-Cooled or Remote Air-Cooled Operation
-PLC Controls
Standard Production / 24 Hours
HES-20 | HES-30 | HES-40 | |
---|---|---|---|
Shipping Weight | 1,050 Lbs / 476 Kg | 1,150 Lbs / 522 Kg | 1,200 Lbs / 544 Kg |
Water Usage
Model | Ice | Maker | Cond | enser |
---|---|---|---|---|
Gallons / 100 Pounds | Liters / 100 Pounds | Gallons / 100 Pounds | Liters / 100 Pounds | |
HES-20S | 14.5 | 54.9 | 124 | 471 |
HES-20M | 14.5 | 54.9 | 103 | 390 |
HES-30S | 14.5 | 54.9 | 220 | 833 |
HES-30M | 14.5 | 54.9 | 341 | 1,291 |
HES-40S | 14.5 | 54.9 | 171 | 647 |
HES-40M | 14.5 | 54.9 | 402 | 1,522 |
HE Series Options:
-Voltage – 460 v, 3 p, 60 hz
-Voltage – 400 v,3 p, 50 hz
-Voltage – 200 v, 3 p, 50 hz
-High Ambient Air-Cooled Condenser
-Electro-fin Coated Condenser
-High Pressure (200psig) Water Condenser / Regulator
-Casing Security Screws (Correctional Usage)
-Dual Ice Feature (cylinder “tube” ice and crushed ice)
-Cutter for 1½” long ice
-Remote switch box
-Flush Valve Assembly
-“CE” Approval (400c, 50 hz only)
-Canadian Registration Number (CRN)
-Export crating (SPM-15 Rated)
With over 80 years of experience, Vogt Ice has the capability to deliver automatic ice production solutions. Whether your output is one or 125 tons per day, Vogt can provide the engineered solutions to exceed your expectations for service, quality and long-lasting ice manufacturing.
Modern Ice and our Freeze Force Technical Services Team engineers, design and integrate Vogt’s equipment into your plant. This strategic partnership can help you achieve the goals you have for your business.
